5 Inch Round LCD Display, 1080x1080 50 Pins MIPI Interface 350CD/M2
| MOQ: | 1000 |
| Price: | $3-$5 |
| Standard Packaging: | blister+foam box+bubble bag+inside carton+master carton |
| Delivery Period: | 4~6weeks |
| Payment Method: | T/T |
| Supply Capacity: | 500K pcs per month |
Detail Information
Place of Origin
China
Brand Name
HuaXin
Certification
ISO14001/ ISO9001/IATF16949
Model Number
ESHX050YMM-J40
Display Technology:
TFT Module
Name:
Tft Panel
Display Size:
5.0 Inch
Resolution:
1080*1080
Interface:
50 PINS MIPI
View Angle:
All
Highlight:
5 inch round TFT display
,1080x1080 MIPI LCD panel
,350cd/m2 round LCD screen
Product Description

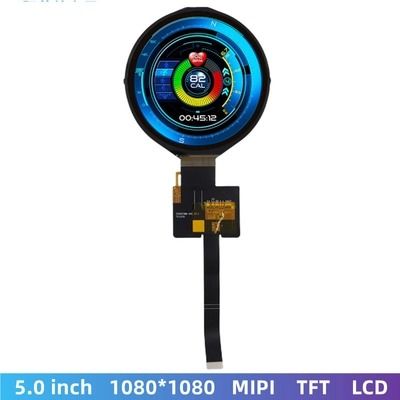

5 Inch Round LCD Display - 1080x1080 Resolution with MIPI Interface
The ESHX050YMM-J40 is a high-performance 5-inch round TFT display featuring 1080x1080 resolution, 50-pin MIPI interface, and 350 cd/m² brightness. Ideal for automotive applications, this display module uses HX8399C drive IC and offers wide viewing angles.
Key Specifications
| Display Technology | TFT module |
|---|---|
| Display Size | 5.0 inch |
| Resolution | 1080 * 1080 |
| Interface | 50 PINS MIPI |
| Brightness | 350 cd/m² |
| View Angle | All |
| Drive IC | HX8399C |
| Part No. | ESHX050YMM-J40 |
| Working Temperature | -20°C to 70°C |
| Storage Temperature | -30°C to 80°C |
Technical Drawing
TFT Product Knowledge
TFT Substrate Input and CF Substrate Input Flow Chart
TFT Structure
Our advantage
- Founded in 2009 in Hubei Enshi, specializing in LCD, LCM, TFT, backlight, and OLED research, development, and production.Product range includes VA, TN, HTN, STN, FSTN, CSTN LCDs and COB, TBA, COG, TP, LED backlight LCMs.
- Registered capital: 20 million | Staff: 500+ (10% R&D, 15% QC)
-
Certifications: ISO14001, ISO9001/IATF16949, SGS
-
Cost-effective production base located in inland city
•Advanced equipment ensuring stable quality
• Highly automated processes for efficiency and consistency
• Experienced engineering team with 20+ years in LCD field
•Custom product design capabilities
Product Applications
- Car navigation & printer
- Video call & advertising
- Automotive & medical devices
- Fitness equipment & handheld devices
- Industrial control and home appliance
