1.75 Inch Round AMOLED Display 466x466 Resolution MIPI QSPI Interface 700 Nits
| MOQ: | 1000 |
| Price: | $6~$1000 |
| Standard Packaging: | blister+foam box+bubble bag+inside carton+master carton |
| Delivery Period: | 4~6weeks |
| Payment Method: | T/T |
| Supply Capacity: | 500K pcs per month |
| Attribute | Value |
|---|---|
| Display Technology | Color Oled |
| Name | oled display panel |
| Size | 1.75 inch |
| Resolution | 466×466 |
| Brightness | 700 nits |
| Interface | QSPI/MIPI |
| Driving IC | CST9217 |
| View Angle | All |

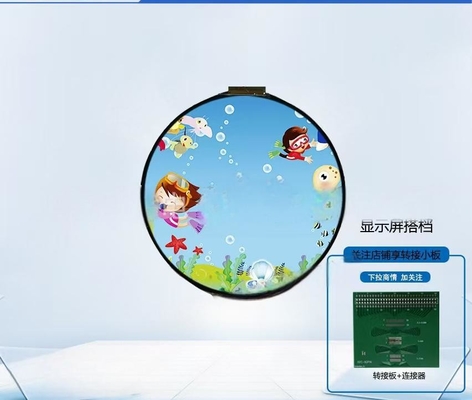

The HX0175Y003AMT003 is a 1.75 inch AMOLED OLED screen module with 466×466 resolution, QSPI/MIPI interface, brightness of 700 cd/m², and uses CST9217 OLED display IC.
| Part No. | HX0175Y003AMT003 |
| Display Mode | 1.75 inch round TFT display |
| Outline Size (mm) | 45.93×46.35×0.8 |
| AA Size (mm) | 43.76×43.76 |
| Display Dots | 466×466 |
| View Angle | All |
| Interface | MIPI, QSPI |
| Working Temperature | -20°C to 70°C |
| Storage Temperature | -30°C to 80°C |
| Driving IC | CST9217 |
| Brightness | 700 cd/m² |
- Perfect Blacks & Infinite Contrast
- Vibrant Colors & Wide Gamut
- Ultra-Fast Response Times
- Flexibility & Thin Designs
- Energy Efficiency
- Always-On Displays (AOD)
- Superior Viewing Angles
- HDR Performance
AMOLED is extremely expensive compared to LCD and TFT, has shorter lifetime than LCD and TFT, and has lower peak brightness in sustained use.
- Factory base located at inland city which has cost effective
- Most advanced new equipment which can keep quality stable
- Most processes using fully automatic equipment which has efficiency and stable quality
- Professional engineers and production leaders who work in LCD field for more than 20 years
- Self design for customized product
- ISO14001
- ISO9001/IATF16949
- SGS of LCD module
Huaxin Technology (Enshi) Co., LTD
- Location: Hubei, Enshi
- Date of foundation: 2009
- High technology enterprise mainly working on research and development, producing and sells LCD, LCM, TFT, backlight, OLED
- LCD includes: VA, TN, HTN, STN, FSTN, CSTN and other series
- LCM includes: COB, TBA, COG, TP, LED backlight and other series
- Register capital: twenty million
- Current staff: 500+
- R&D accounts for 10%
- QC accounts for 15%
| Annual Production Capacity | 2021 (Current) | 2022 (Goal) | 2023 (Challenge) | 2024 (Challenge) | 2025 (Challenge) | Remark |
|---|---|---|---|---|---|---|
| LCD Production Capacity | 4.5 | 9 | 9 | 9 | 9 | Unit: thousands of logarithms/Day |
| LCM Production Capacity | 70 | 150 | 300 | 450 | 450 | Unit: Thousand piece/Day |
| Backlight Production Capacity | 100 | 200 | 300 | 500 | 500 | Unit: Thousand piece/Day |
| OLED Production Capacity | 10 | 20 | 30 | 40 | 50 | Unit: Thousand piece/Day |
- Smartphones and tablets
- Wearables (smartwatches like Apple Watch)
- AR/VR headsets
- Television and monitors
- Automotive display
- Medical and smart home
AMOLED displays consume power on a per-pixel basis, meaning that pixels that display black or dark content consume very little power, while pixels displaying bright or white content consume more power.
LCD and LED displays, on the other hand, require a constant backlight that consumes power regardless of the displayed content.
AMOLED displays are more power-efficient for content with a lot of dark or black areas, as the individual pixels can be turned off to save power.
LCD and LED displays consume a relatively constant amount of power regardless of the displayed content, as the backlight remains active.
AMOLED displays can dynamically adjust the brightness of individual pixels, allowing for better power efficiency in low-brightness scenarios.
LCD and LED displays typically have a fixed backlight brightness, which can result in higher power consumption even when the display content does not require maximum brightness.
AMOLED displays tend to be more power-efficient for smaller display sizes, as the power consumption scales with the number of pixels.
Larger LCD and LED displays may require more power-hungry backlights, potentially reducing their power efficiency compared to AMOLED displays of the same size.
