PRODUCTS DETAILS
Products
Contact Us
|

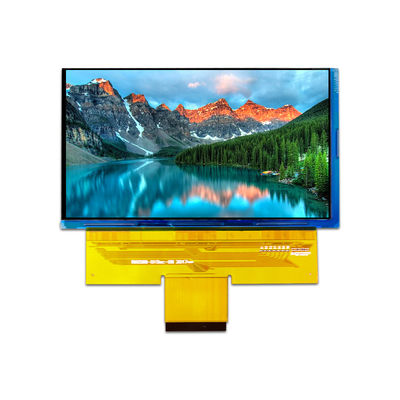

5.8 Inch FHD TFT Display
| MOQ: | 1000 |
| Price: | $25.6 |
| Standard Packaging: | blister+foam box+bubble bag+inside carton+master carton |
| Delivery Period: | 4~6weeks |
| Payment Method: | T/T |
| Supply Capacity: | 500K pcs per month |
Detail Information
Place of Origin
China
Brand Name
HuaXin
Certification
ISO14001/ ISO9001/IATF16949
Model Number
ESHX5801G04-57H
Document
Display Technology:
TFT Screen
Name:
High Resolution Tft
Display Size:
5.8 Inch TFT Display
Resolution:
1280x768
Interface:
60PINS LVDS
Brightness:
400c/d
Driving IC:
HX8286*3+HX8695
Highlight:
5.8 inch FHD TFT display
,1280x768 high resolution TFT display
,60 pins LVDS interface TFT display
Product Description
5.8 Inch FHD TFT Display High resolution Tft Display 1280x768 Dots 60 pins lVDS Interface 400c/d
Key Specifications
| Part No: | ESHX5801G04-57H |
| Panel Size | 5.8 inch TFT |
| outline dimension | 137.48x84.7x1.315 |
| Display Area(mm) | 126.72X74.88 |
| display mode | normally white ,transmissive |
| Number of Dots | 1280x768 |
| View angle | 12:00 |
| Driving IC | HX8286*3+HX8695 |
| Luminance | 400C/D |
| operating temperature | -20~70 |
| storage temperature | -30~80 |
| interface | 60 pins LVDS |
Product Images
Technical drawing
TFT Technology Overview
Manufacturer Advantages
- Cost-effective inland factory location
- Advanced equipment ensuring stable quality
- Automated processes for maximum efficiency
- 20+ years of LCD industry experience
- Custom design capabilities available
Certifications
- ISO14001 Environmental Management
- ISO9001/IATF16949 Quality Management
- SGS certified LCD modules
TFT Display Characteristics
- High resolution with excellent color accuracy
- Fast response times for smooth visuals
- Wide viewing angles for flexible positioning
- Energy efficient LED backlight system
- Available in versatile size options
Common Applications
- Automotive: navigation systems, dash displays
- Medical devices and diagnostic equipment
- Industrial control systems and HMI
- Consumer electronics and home appliances
- Digital signage and information displays
Technical Considerations
- Viewing angle limitations in some models
- Contrast ratio constraints compared to newer technologies
- Backlight power requirements
- Potential motion blur in fast-moving content
- Fixed panel structure with limited customization
Company Profile
Huaxin Technology (Enshi) Co., LTD
Founded 2009 in Hubei, China
- Specializes in LCD, LCM, TFT, backlight, and OLED technologies
- 500+ employees with dedicated R&D and QC teams
- Registered capital: 20 million RMB
