2.54 Inch VR LCD Display
| MOQ: | 1~1000 |
| Price: | $48~$47 |
| Standard Packaging: | blister+foam box+bubble bag+inside carton+master carton |
| Delivery Period: | 4~6weeks |
| Payment Method: | T/T |
| Supply Capacity: | 500K pcs per month |
Detail Information
Place of Origin
China
Brand Name
HuaXin
Certification
ISO14001/ ISO9001/IATF16949
Model Number
ESHX025ZSM
Document
Display Technology:
AR TFT Display
Name:
VR LCD Panel
Display Size:
2.54 Inch TFT LCD
Resolution:
1440(H) × 1600(V)
Interface:
50 Pins MIPI DSI
Brightness:
350c/d
View Angle:
ALL
Driving IC:
NT57860
Highlight:
2.54 Inch VR LCD Display
,2.54 Inch custom lcd panel
,1440X1600 VR LCD Display
Product Description
2.54 Inch VR LCD Display 1440X1600 50 Pins MIPI Interface 350c/D Driving IC NT57860
Key Specifications
| Attribute | Value |
|---|---|
| Display Technology | AR TFT display |
| Display Size | 2.54 inch TFT LCD |
| Resolution | 1440(H) × 1600(V) |
| Interface | 50 pins MIPI DSI |
| Brightness | 350c/d |
| Viewing Angle | All directions |
| Driving IC | NT57860 |
Technical Parameters
| Part Number | ESHX025ZSM |
| Panel Size (mm) | 46.6(H) × 55.5(V) × 2.34(T) |
| Active Area (mm) | 43.2(H) × 48(V) |
| Working Temperature | -10°C to 60°C |
| Storage Temperature | -20°C to 70°C |
Product Images

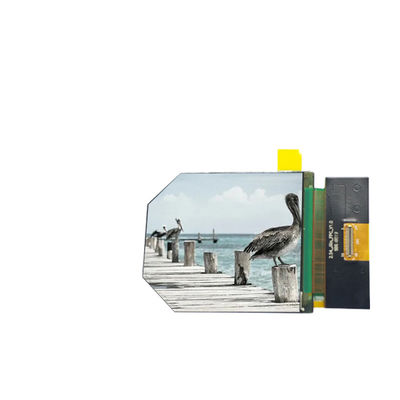

Front View
Side View
Close-up View
Technical Details
Pin Definition Diagram
TFT Technology Overview
Manufacturer Advantages
- Cost-effective inland factory location
- Advanced equipment for stable quality
- Highly automated processes for efficiency
- 20+ years of LCD engineering expertise
- Custom product design capabilities
About Huaxin Technology (Enshi) Co., LTD
Founded: 2009 | Location: Hubei, Enshi
Specialization: LCD, LCM, TFT, backlight, OLED research, development and production
Product Range: VA, TN, HTN, STN, FSTN, CSTN LCDs and COB, TBA, COG, TP modules
Certifications: ISO14001, ISO9001, IATF16949, SGS
Capital: 20 million | Staff: 500+ (10% R&D, 15% QC)
Production Capacity (thousands/day)
| Product Type | 2021 | 2022 | 2023 | 2024 | 2025 |
|---|---|---|---|---|---|
| LCD | 4.5 | 9 | 9 | 9 | 9 |
| LCM | 70 | 150 | 300 | 450 | 450 |
| Backlight | 100 | 200 | 300 | 500 | 500 |
| OLED | 10 | 20 | 30 | 40 | 50 |
Applications
- Car navigation systems & printers
- Video communication & digital signage
- Automotive & medical devices
- Fitness equipment & handheld devices
- Industrial controls & home appliances
TFT Display Advantages
- High resolution and color accuracy
- Fast response times
- Wide viewing angles
- Energy efficient operation
- Flexible size options
- LED backlight compatibility
- Broad application suitability
TFT Display Considerations
- Viewing angle limitations in some models
- Contrast ratio constraints
- Backlight power requirements
- Potential motion blur in fast-moving content
- Limited flexibility in curved applications
- Color gamut restrictions
