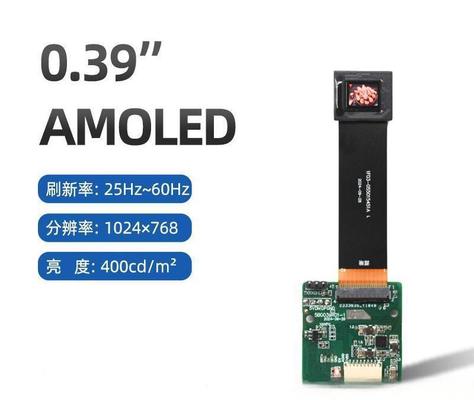

0.39 Inch Micro OLED Display
| MOQ: | 1~1000 |
| Price: | $48~$45 |
| Standard Packaging: | blister+foam box+bubble bag+inside carton+master carton |
| Delivery Period: | 4~6weeks |
| Payment Method: | T/T |
| Supply Capacity: | 500K pcs per month |
Detail Information
Place of Origin
China
Brand Name
HuaXin
Certification
ISO14001/ ISO9001/IATF16949
Model Number
HX039F8CSFS01
Display Technology:
AR Display
Size:
0.39 Inch
Name:
Micro Oled Display
Resolution:
1024*768
Interface:
MIPI
View Angle:
All
Brightness:
400 C/D
Testing Board:
CVBS Board Is Optional(customizationispossible)
Highlight:
0.39 Inch Micro OLED Display
,0.39 Inch 4k micro oled
,Monochrome Micro OLED Display
Product Description
0.39 Inch Monochrome Micro OLED Display
High-resolution 1024×768 monochrome micro OLED display with CVBS interface and 400cd/m² brightness. Ideal for scopes, night vision imaging devices, and applications requiring low light performance with high contrast.
Key Specifications
| Attribute | Value |
|---|---|
| Display Technology | AR display |
| Size | 0.39 inch |
| Resolution | 1024×768 |
| Interface | MIPI |
| View Angle | All |
| Brightness | 400 C/D |
| Testing Board | CVBS board optional (customization available) |
Technical Parameters
| Part No. | HX039F8CSFS01 |
| Display Mode | 0.39 inch micro OLED with board |
| AA Size (mm) | 8.1352×6.1779 |
| Display Dots | 1024×768 |
| Overall Dimensions | 16.6×14.2 mm |
Product Images
Front View
Side View
Close-up View
With Testing Board
Technical View
Specifications
Pin Definition
Micro OLED Technology Overview
Key Advantages
- Ultra-High Pixel Density (PPI)
- Thin, Lightweight, and compact design
- Superior Image Quality
- Lower power consumption
- Wide operating Temperature Range
- High brightness & Efficiency (with advanced designs)
- Manufacturing & Scalability benefits
Considerations
- Higher production costs & limited supply
- Limited brightness compared to Micro LED
- Restricted view angles
- Shorter lifespan compared to micro LED
- Primarily suitable for small display applications
Manufacturer Advantages
- Cost-effective inland factory location
- Advanced equipment for stable quality
- Automated processes for efficiency and consistency
- 20+ years of LCD engineering expertise
- Custom product design capabilities
Certifications
- ISO14001
- ISO9001/IATF16949
- SGS certified LCD modules
Applications
- VR/AR/MR headsets
- Military and aerospace systems
- Medical devices and microdisplays
- Camera and electronic viewfinders
- Automotive displays
- Wearable devices and smart glasses
Technology Comparison
| Feature | Micro OLED | Traditional OLED | MicroLED |
|---|---|---|---|
| Substrate | Silicon wafer | Glass/plastic | Sapphire/glass |
| PPI | 3,000-5,000+ | 400-800 | 1,000+ |
| Size | <1 inch common | Smartphone/TV sizes | Scalable |
| Power Use | Low | Medium | Very Low |
| Lifespan | Moderate | Moderate | Very Long |
| Cost | High | Moderate | Very high |
Future Outlook: Micro OLED technology is expected to dominate AR/VR and wearable displays due to its unmatched pixel density, with major industry players investing heavily in its development.
